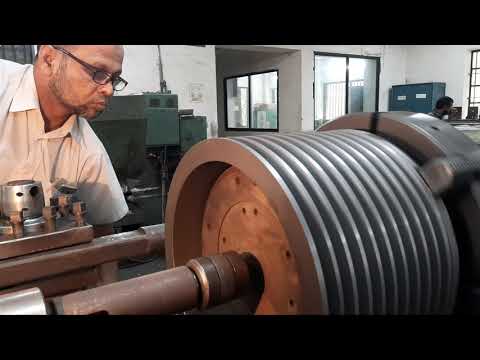

Crafting a 10-Groove Big V-Belt Pulley: Machining a Cast Iron Pulley on a Lathe

Introduction:

In the realm of machinery, pulleys serve as vital components for power transmission, providing a means to transfer rotational motion from one shaft to another efficiently. Among the diverse types of pulleys, the 10-groove big V-belt pulley stands out for its versatility and capability to handle significant loads. In this article, we'll explore the intricate process of machining a 10-groove big V-belt pulley from cast iron on a lathe, highlighting the precision and craftsmanship involved in its creation.

Understanding the 10-Groove Big V-Belt Pulley:

A V-belt pulley is a type of pulley with a V-shaped groove that accommodates V-belts, which are commonly used in machinery for power transmission. The 10-groove big V-belt pulley refers to a pulley with ten grooves along its circumference, allowing it to accommodate multiple V-belts simultaneously. This design is particularly useful in applications requiring high power transmission or where space constraints necessitate compact solutions.

The Role of Cast Iron in Pulley Manufacturing:

Cast iron is a popular choice of material for pulley manufacturing due to its excellent machinability, wear resistance, and ability to withstand heavy loads and high temperatures. When properly machined, cast iron pulleys offer exceptional durability and longevity, making them suitable for demanding industrial applications.

Machining Process on a Lathe:

1. Material Selection: Begin by selecting a high-quality cast iron blank of suitable size and dimensions for the 10-groove big V-belt pulley. The blank should have sufficient material to accommodate the desired outer diameter and groove dimensions of the pulley.

2. Mounting on the Lathe: Securely mount the cast iron blank on the lathe chuck, ensuring proper alignment and concentricity to prevent vibration and inaccuracies during machining.

3. Turning the Outer Diameter: Use a lathe cutting tool to turn down the outer diameter of the cast iron blank to the specified dimensions of the pulley. This process involves removing excess material gradually while maintaining tight tolerances and a smooth surface finish.

4. Grooving: Once the outer diameter is turned to size, use specialized grooving tools to cut the ten grooves along the circumference of the pulley. Each groove must be accurately spaced and dimensioned to ensure proper alignment and engagement with the V-belts.

5. Chamfering and Deburring: After grooving, chamfer the edges of the pulley grooves to remove sharp corners and prevent stress concentrations. Additionally, deburr any rough edges or burrs left behind by the machining process to ensure a clean and polished finish.

6. Quality Inspection: Perform thorough quality inspections to verify the dimensional accuracy, surface finish, and concentricity of the machined pulley. Check each groove for uniform depth and spacing to ensure compatibility with V-belts.

Conclusion:

Machining a 10-groove big V-belt pulley from cast iron on a lathe is a meticulous process that requires precision, expertise, and attention to detail. By following proper machining techniques and utilizing high-quality materials, manufacturers can produce pulleys that meet the stringent requirements of industrial applications. From power transmission in heavy machinery to automotive systems and beyond, the 10-groove big V-belt pulley plays a crucial role in ensuring smooth and reliable operation across various sectors.
